Zeb PGP 550W (80 Plus)
|
|
Introducing 80+ bronze certified, ZEB-PGP550W premium power supply, |
|
|
|
|
| ZEB-PGP550W comes with 80+ bronze certification. The power supply features a high-efficiency design with a high power factor. |
|
|
|

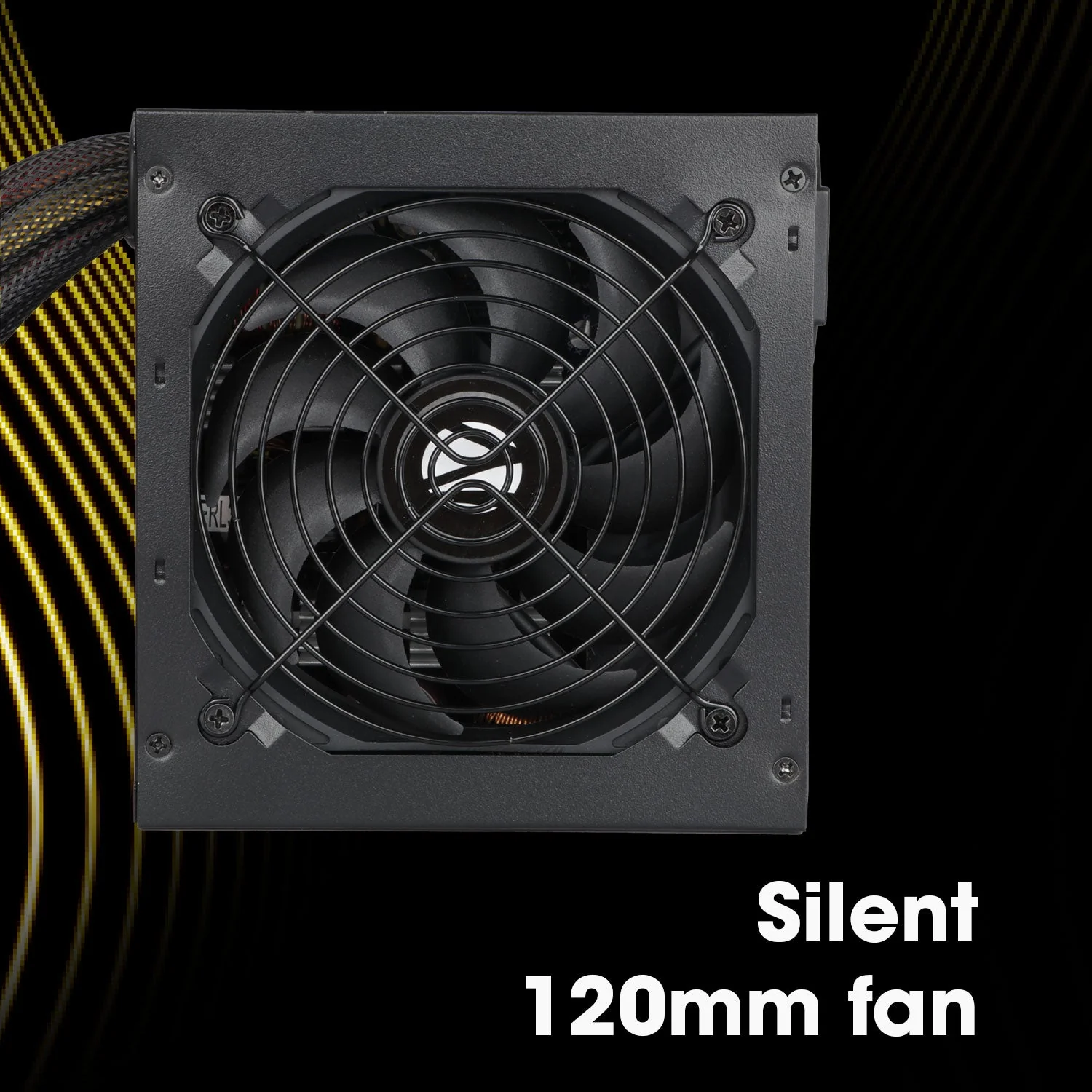

The power supply comes with a 120mm fan to provide superior cooling with quiet operation. |
 |
|

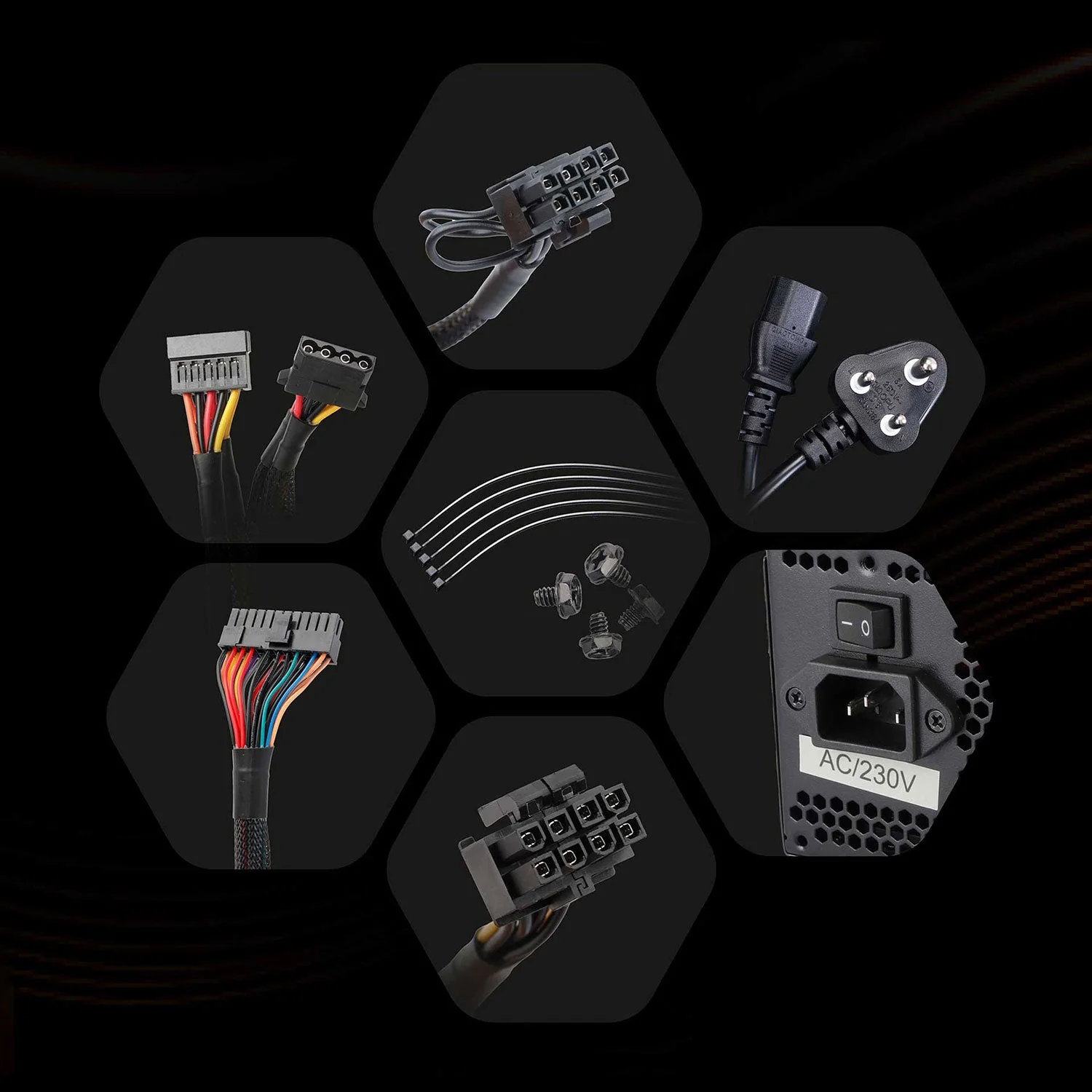

The power supply comes with all necessary connectors for your computer. It has a |
|
|
|
|

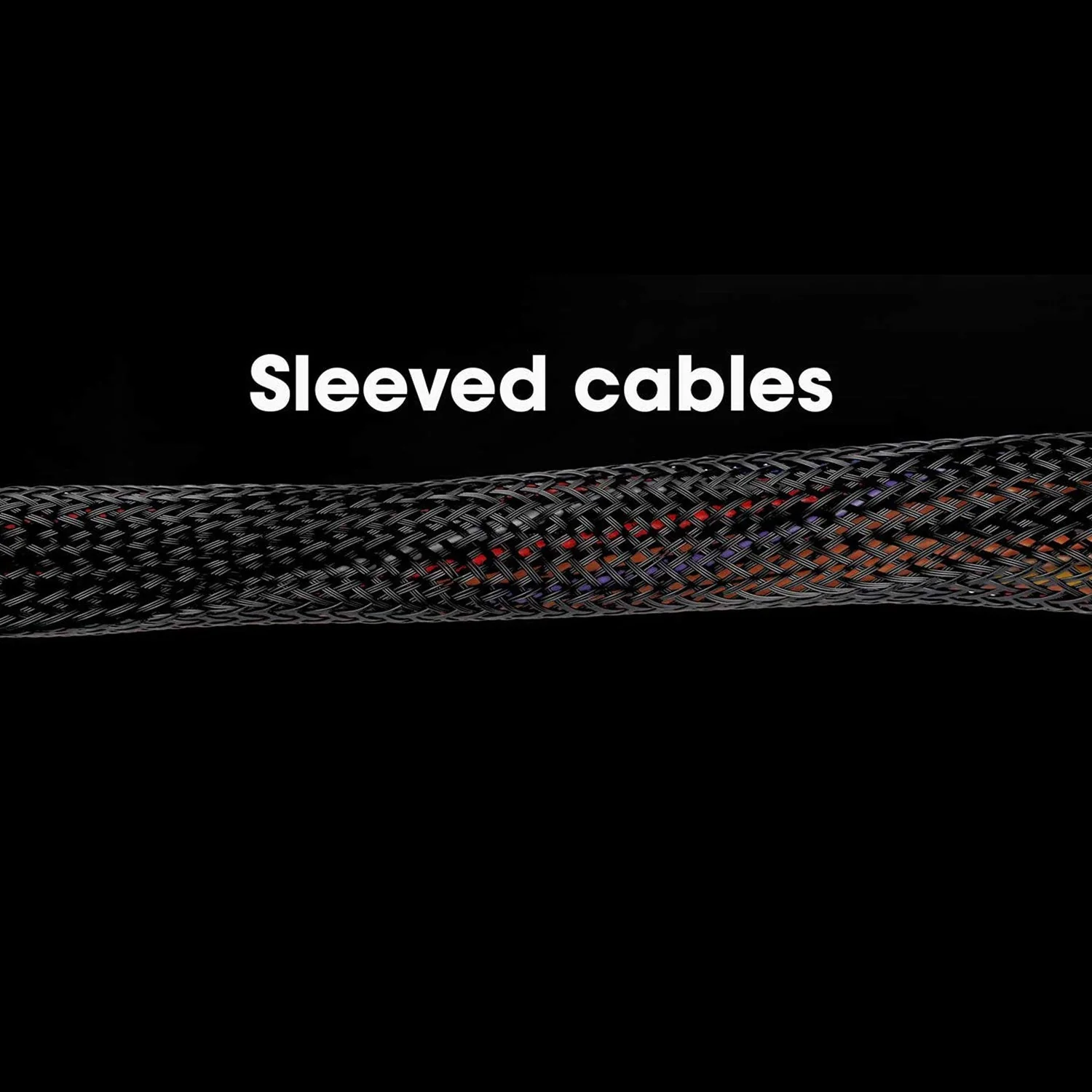

| The power supply comes with long and sleeved cables. It ensures easy cable management and better reliability. |
 |
 |
 |
 |
Features
| 80+ Bronze power supply |
|
| High efficiency | |
| Dual PCIe connectors | |

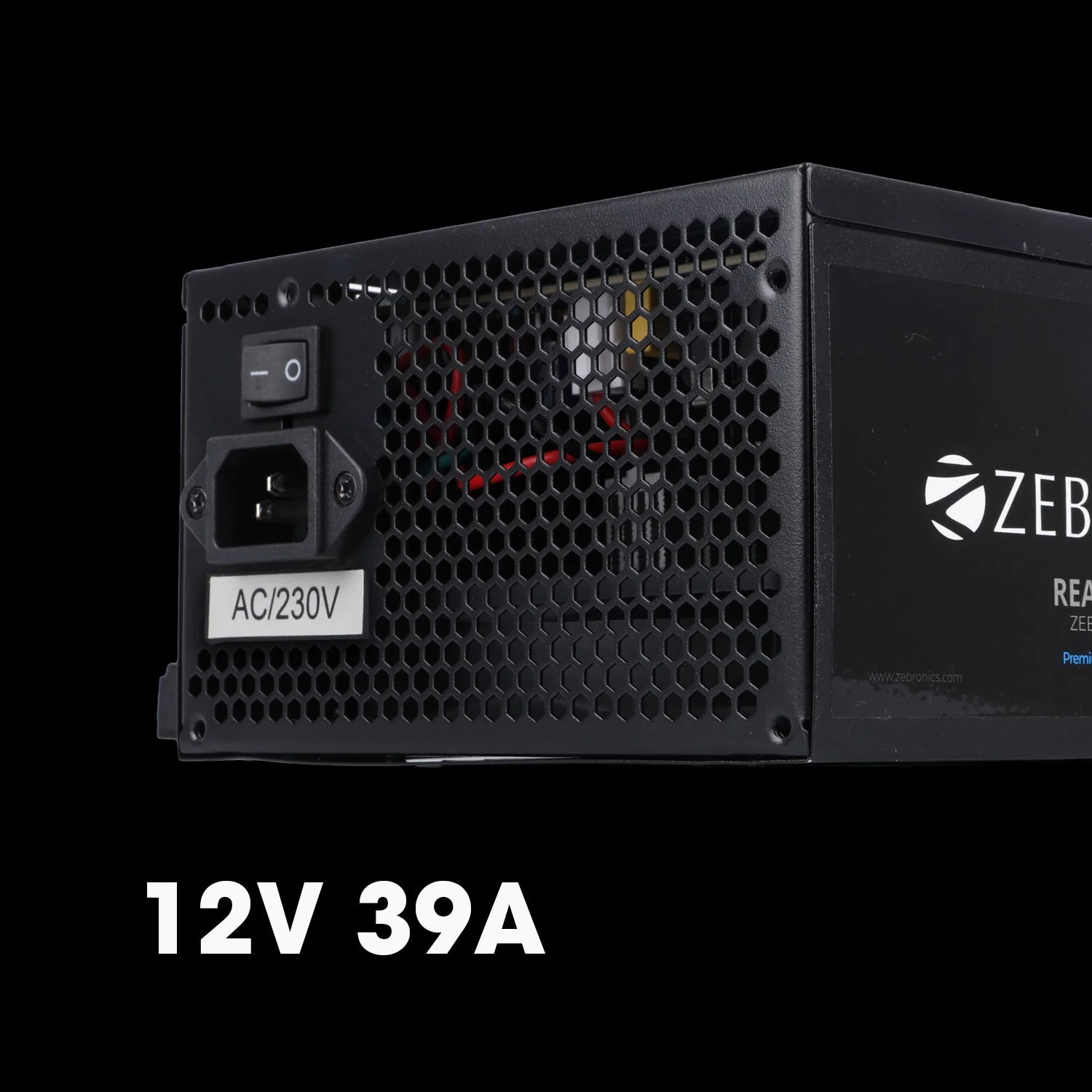

| Single 39A 12V rail | |
| Full protection built in |
Specifications

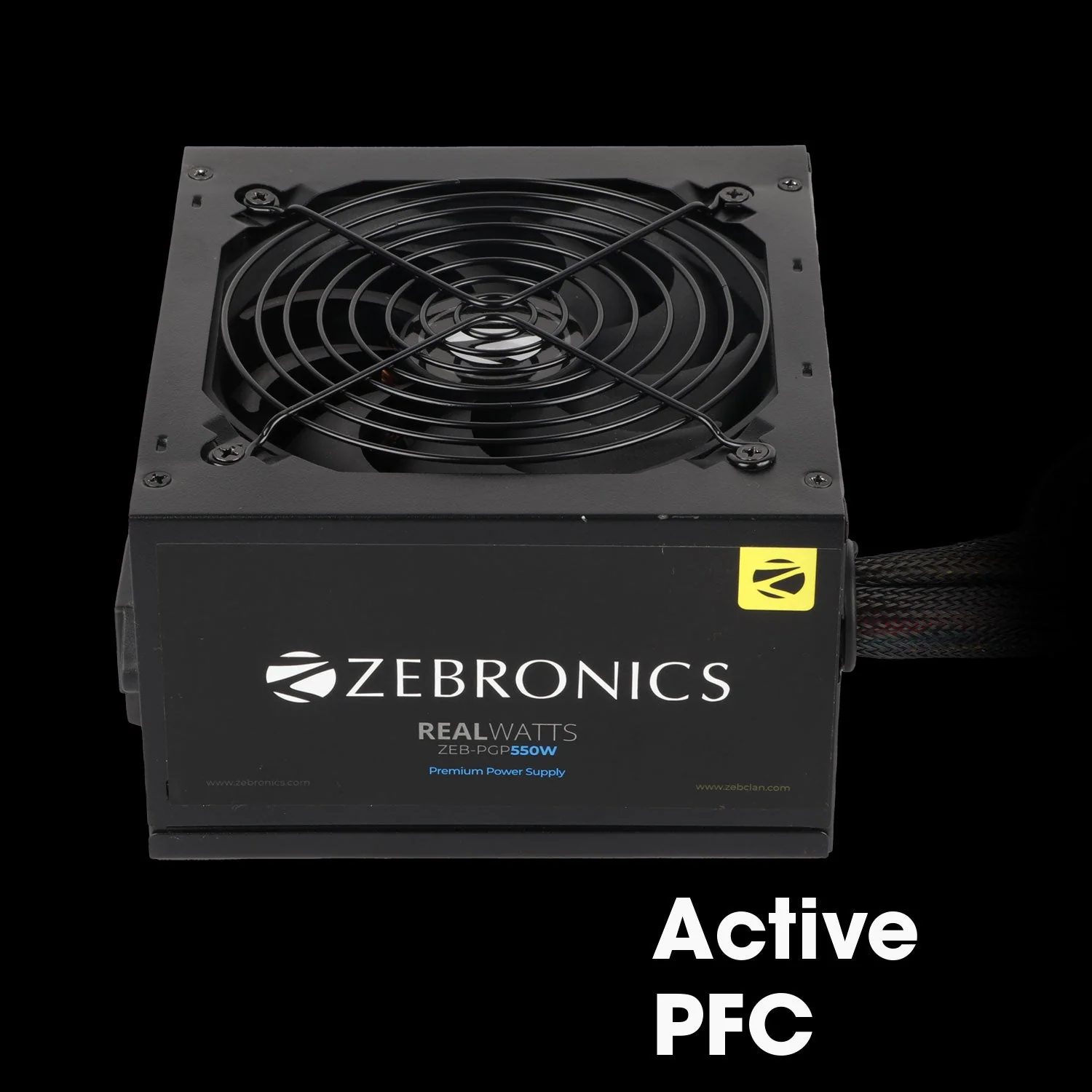

| Active PFC | Yes | |
| Input voltage |
230VAC | |
| Input current |
5A | |
| Fan type |
Hydraulic bearing | |
| Power good signal |
≥300ms | |
| Hold up time | ≥16ms | |
| Protections |
OVP/OPP/SCP/UVP/OCP | |
| Product Dimension (W x D x H) | 150 x 140 x 86 mm |
|
| Package Dimension (W x D x H) | 285 x 187 x 117 mm | |
| Net Weight |
1.5 kg | |
| Country of Origin | China | |
|
||
| Power supply |
1 No | |
| Power cord |
1 No | |
| Mounting screws |
4 Nos | |
| Cable tie |
5 Nos | |
| QR user guide |
1 Nos | |
| *For additional 1 year warranty, register on our website. |
