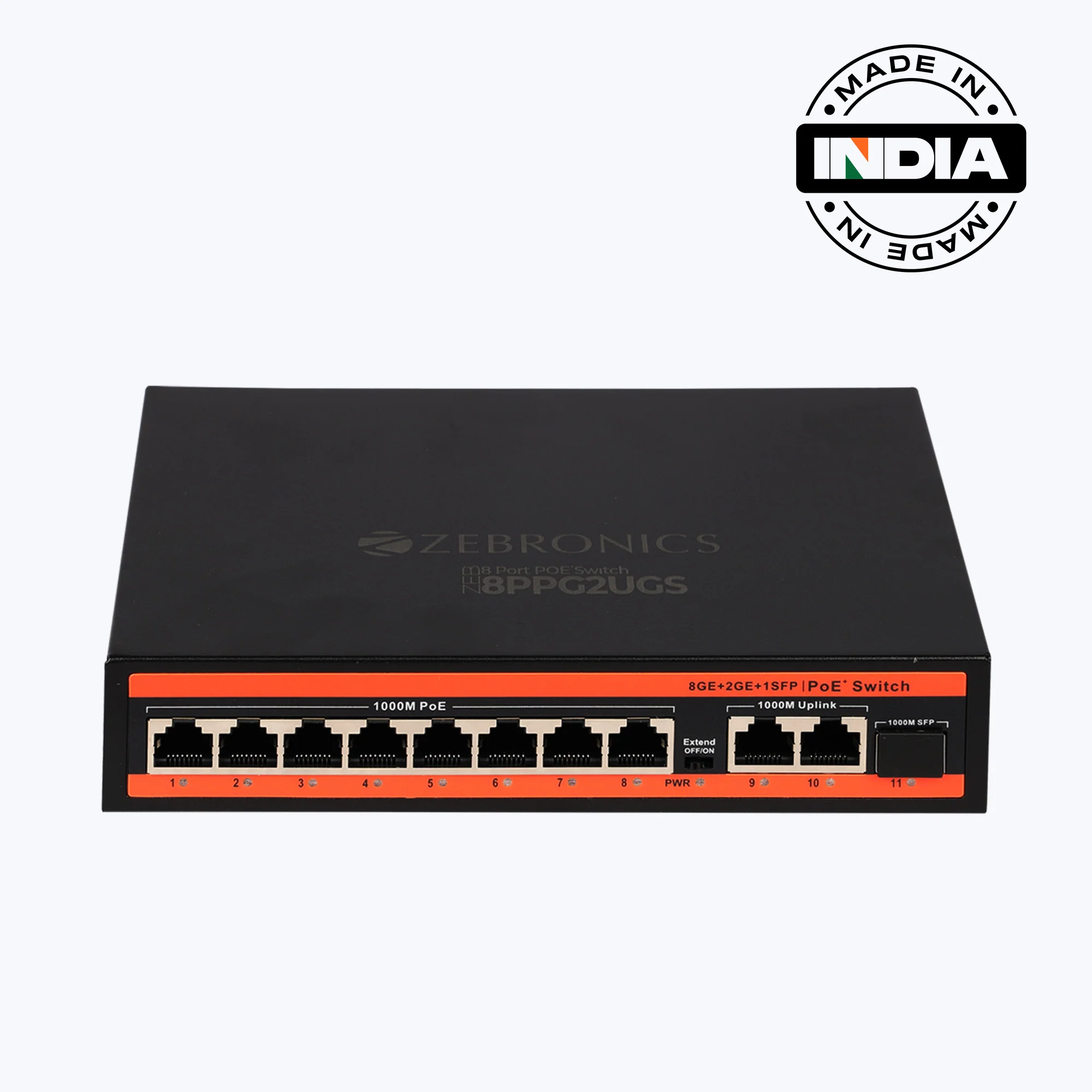

Zeb 8PPG2UGS - 8 Port POE Switch

Product image 1
1 / 8

Zeb 8PPG2UGS - 8 Port POE Switch

Features

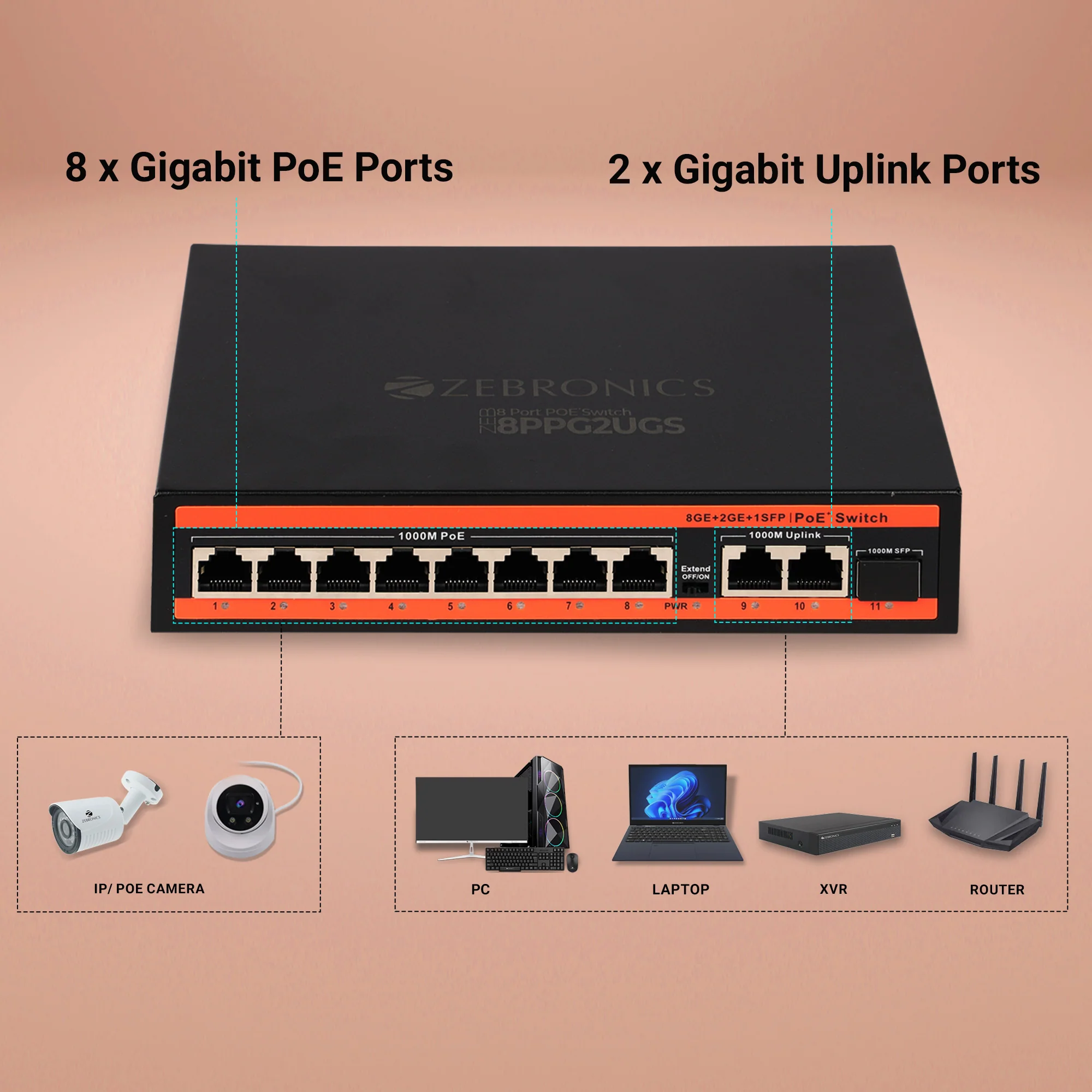

 8 Self Adaptive Gigabit PoE Ports

Dual Gigabit Uplink Ports

100m Transmission (Max.)

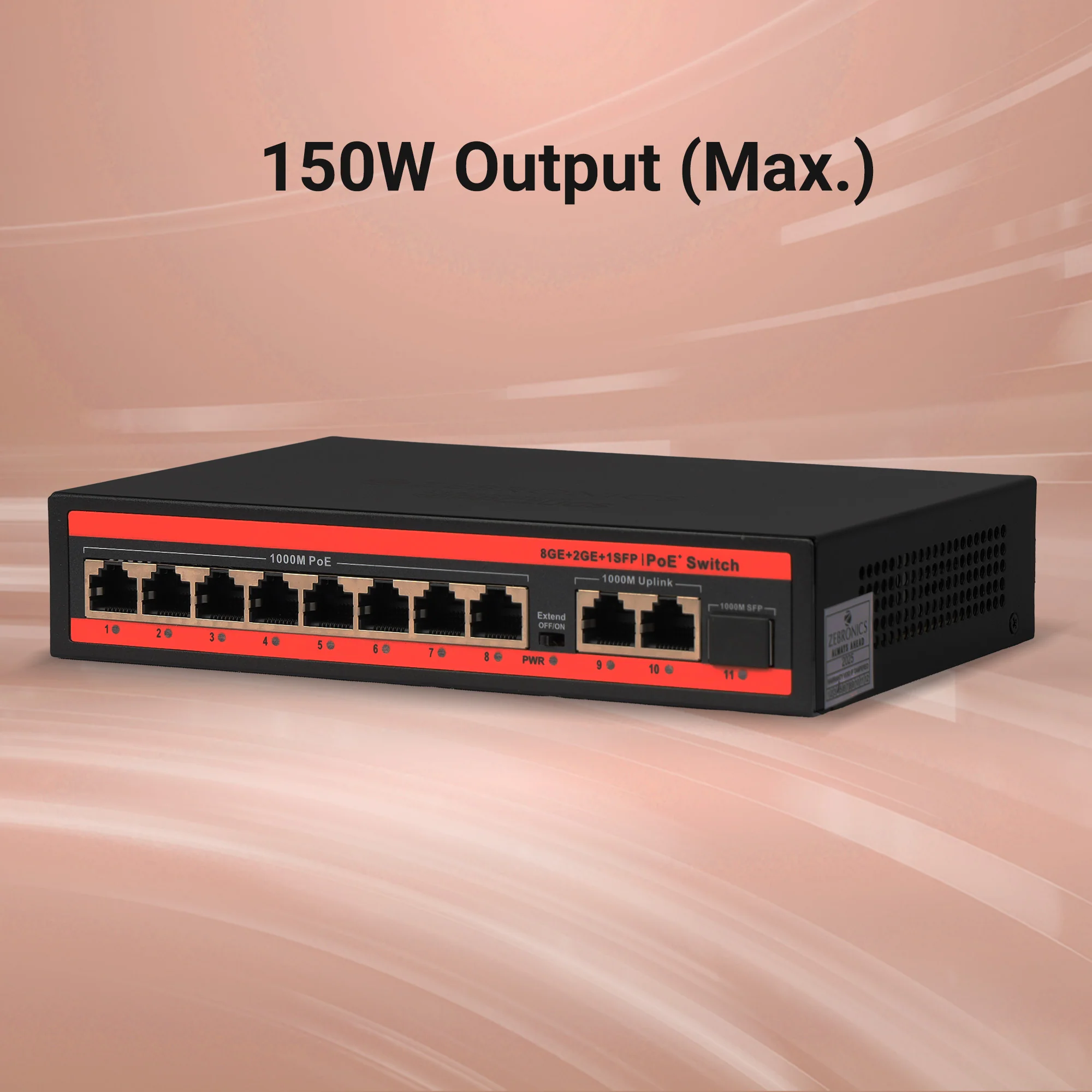

150W Output (Max.)

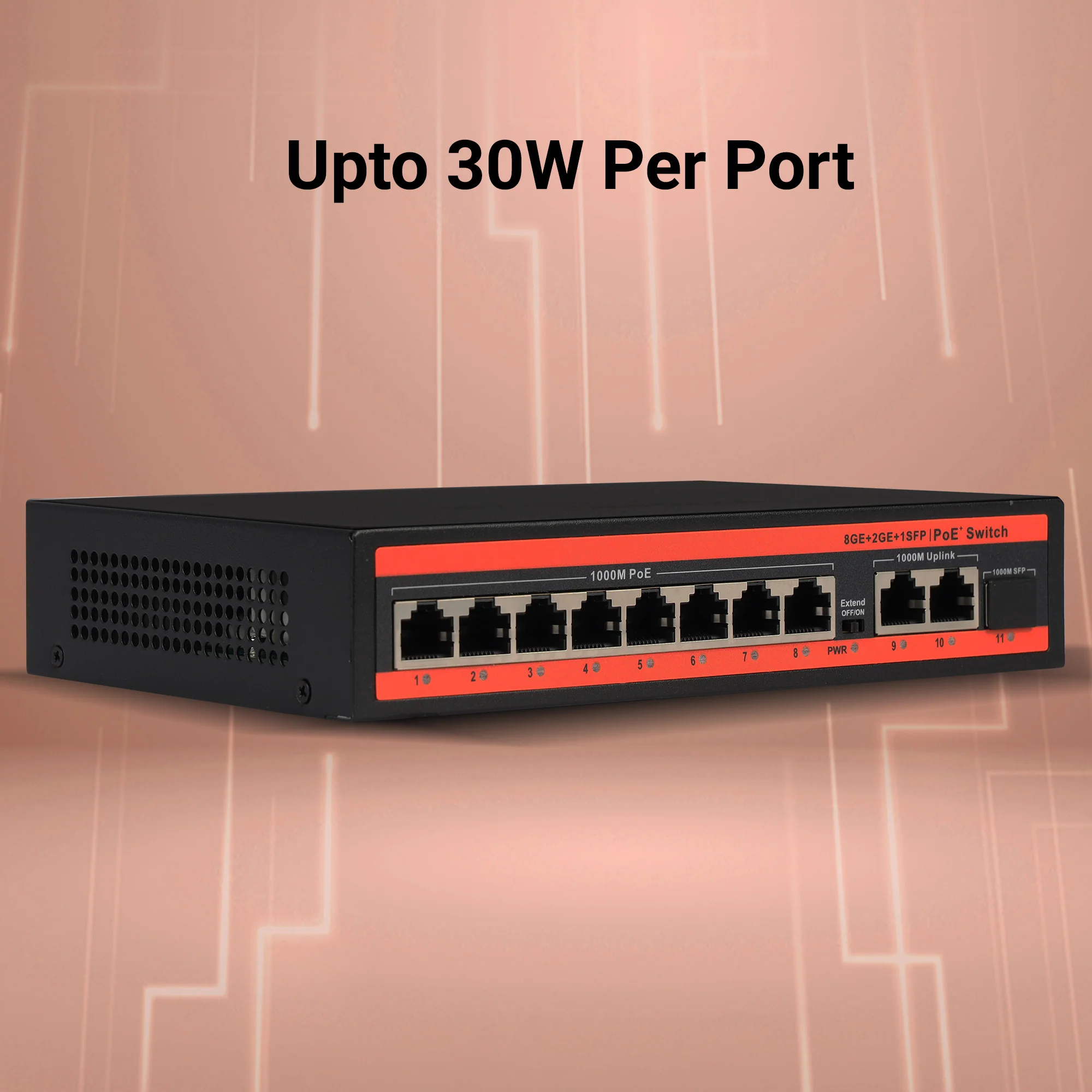

Upto 30W Per Port

High Data Rate

Wide Compatibility

Flexible Mounting

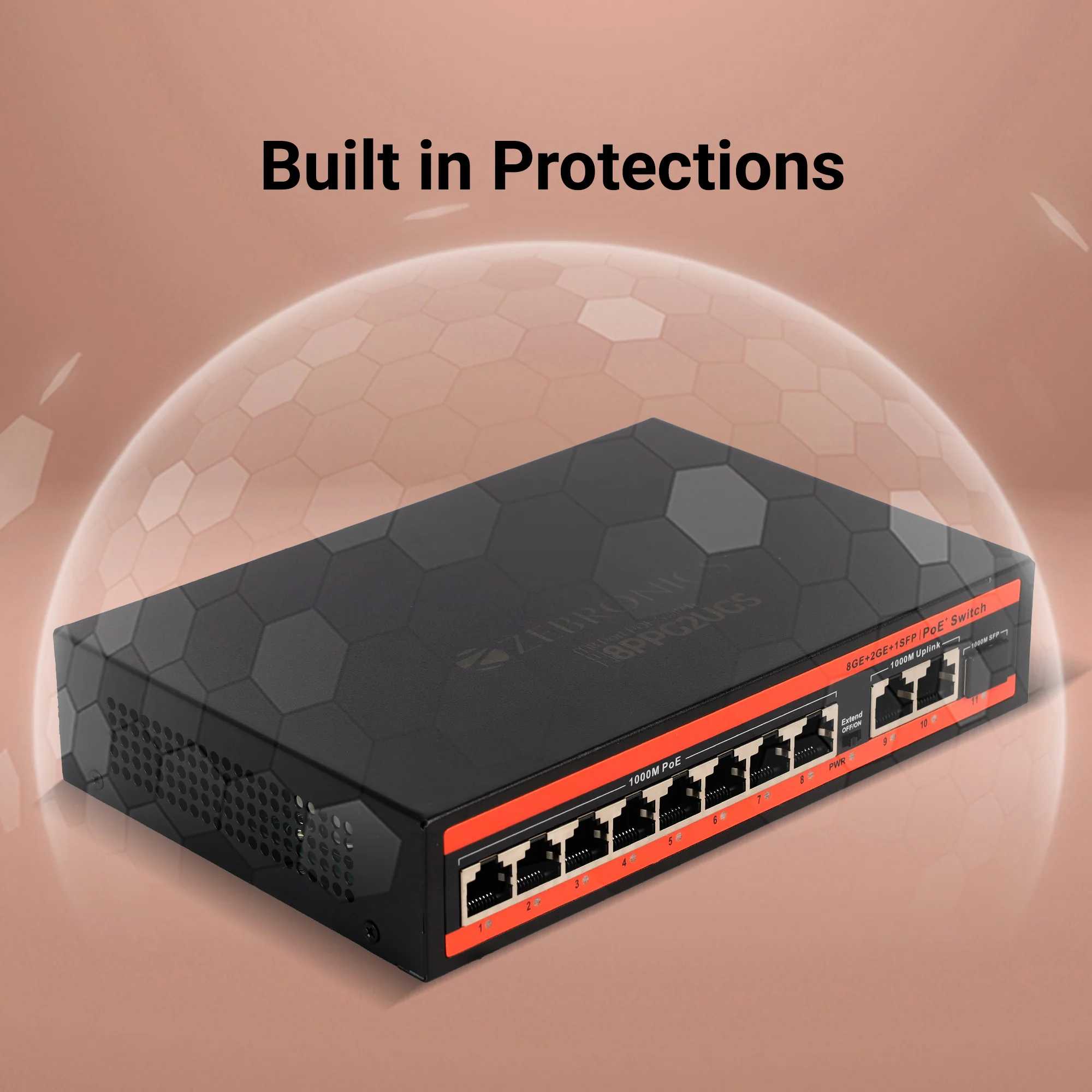

Short Circuit Protection

Voltage Protection

Anti Interference Capability

Lightning Protection

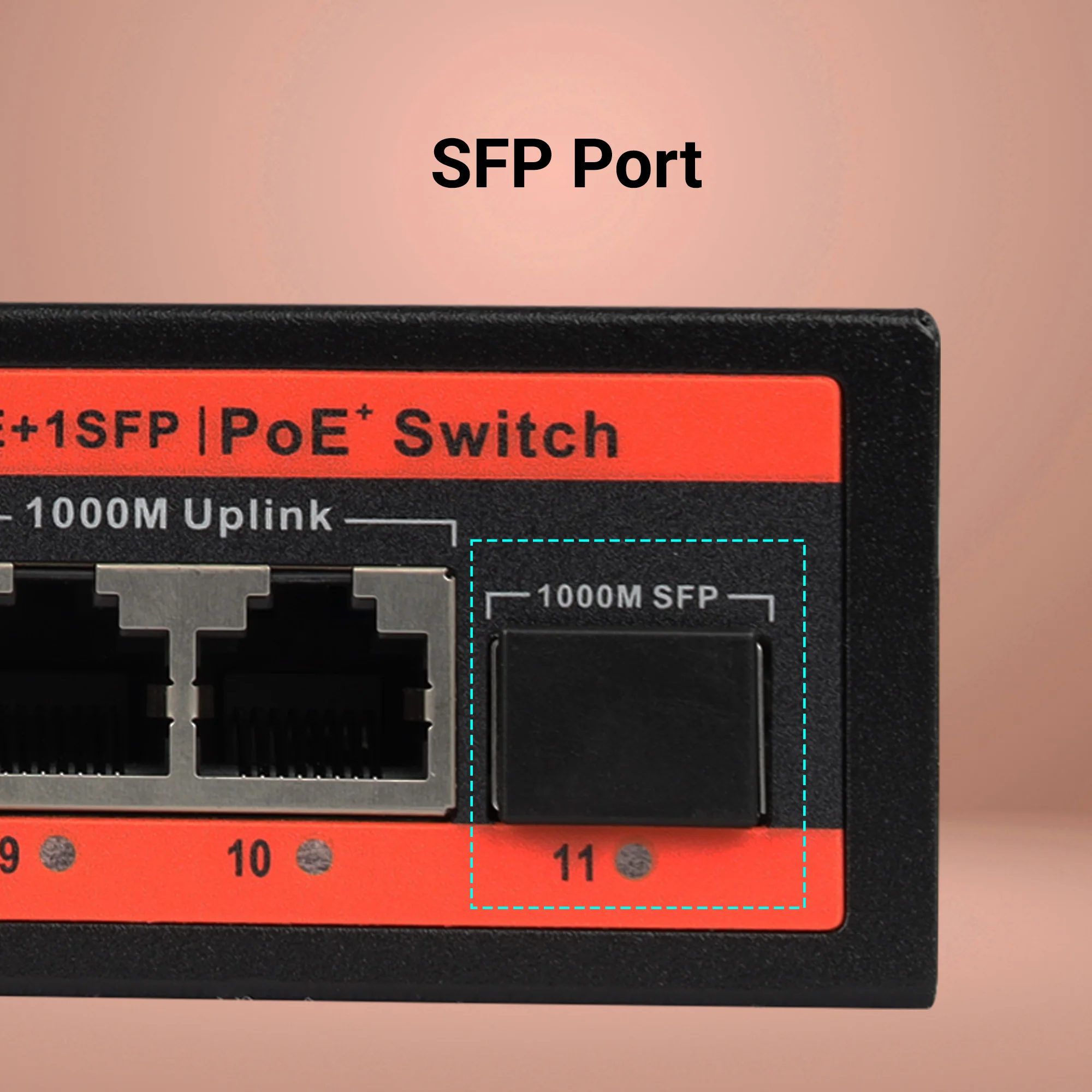

SFP port

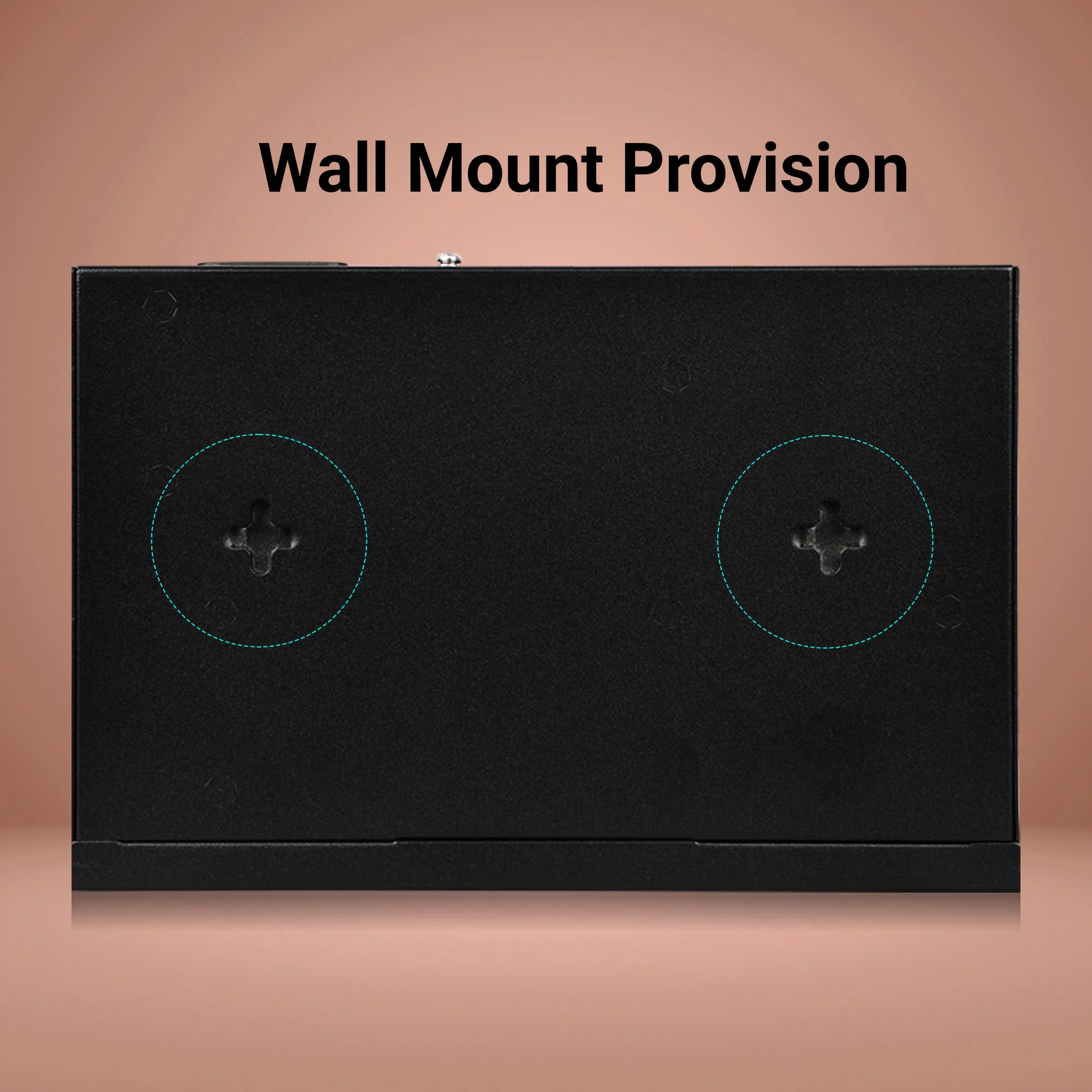

Wall Mount Provision


Specifications


 Connector Type 8 Ports 1000M PoE + 2 Ports 1000M Ethernet Uplink + 1SFP port

Network Protocols IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab

PoE Parameters PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W)
PoE Compatibility: IEEE802.3af/at Self Adaptive
Power Pin Assignment : MODE A [1/2(+), 3/6(-)]

Network Media 10BASE-T: <250 meters
100BASE-TX: <100 meters
1000BASE-T: <100 Meters

Power Supply Input: AC110-240V, 50/60Hz
Output: 30W Per Port
Power Budget: 150W

Performance Specification

Bandwidth: 22Gbps
MAC: 2K
Packet Buffer Memory: 1 Mbits
10M Packet Forwarding Rate: 14880pps/port
100M Packet Forwarding Rate: 148800pps/port
1000M Packet Forwarding Rate: 1488000pps/port

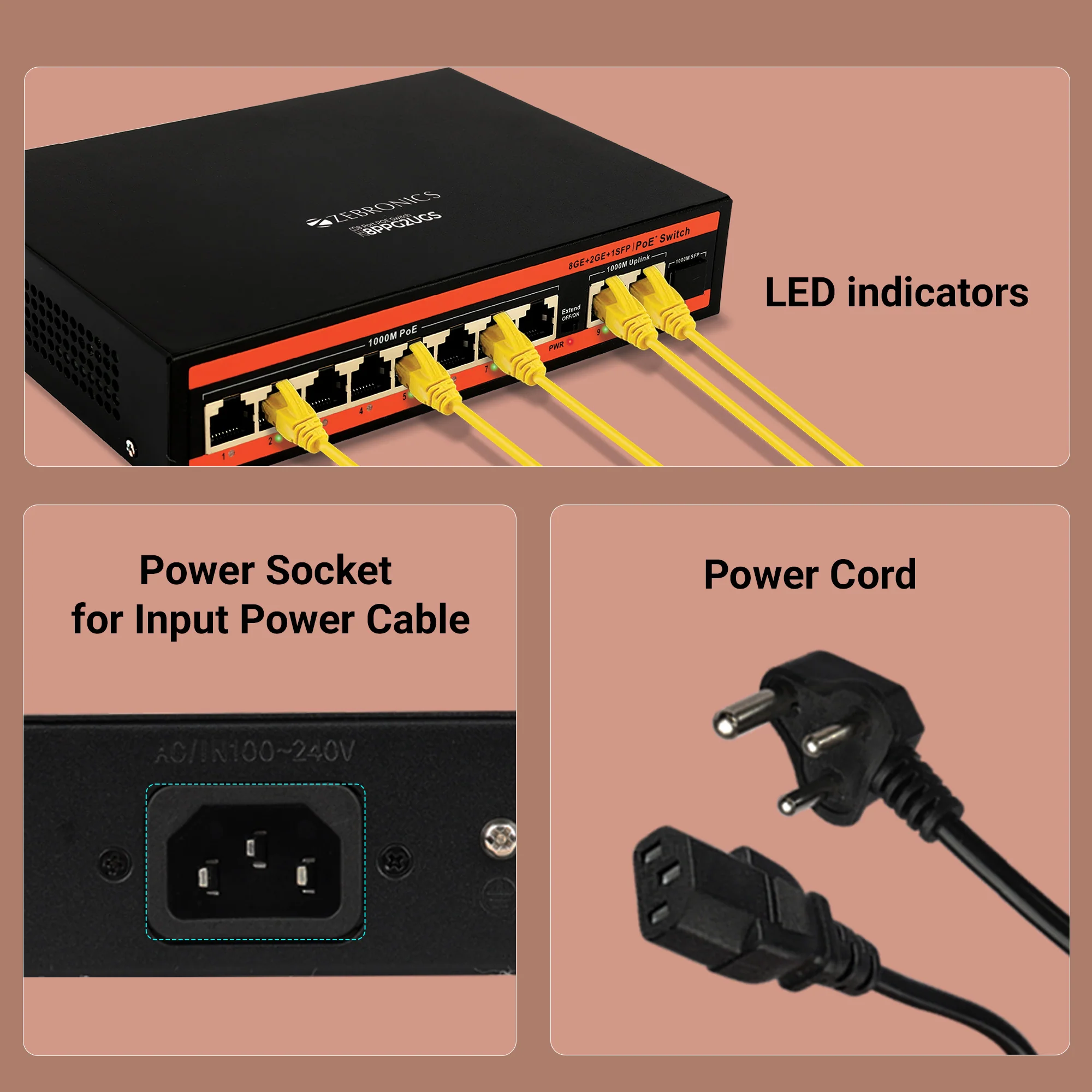

LED Indicator Power (Red): Lit - Powered, Unlit - No Power
Ethernet : Flash - Data Transmit, Unlit - Disconnect

Working Environment

Operating Temperature: 25°C ~ 55°C
Storage Temperature: 20°C ~ 70°C
Operating Humidity: Max 25 ~ 90%, Non-Condensing
Storage Humidity: Max 20 ~ 95%, Non-Condensing

Physical Parameter

Product Dimension (W x D x H) : 19 x 12.5 x 4 cm
Package Dimension (W x D x H) : 21x 19.9 x 4.8 cm

Net. Weight 610 g

Transmission Distance Data Transmission Distance: 250 (Max.)
PoE distance upto 100 meters via Cat.6

Port Surge Protection 4KV

Forwarding Mode
 Store and forward

Country of Origin India

Package Contents

Ethernet Switch
 1U

Power Cord
 1U

QR Code Guide 1U
$104.04
Zeb 8PPG2UGS - 8 Port POE Switch—
$104.04
