Zeb AHDPBSL24
Features
| ICR / AGC / BLC / AWB / HLC | |
| UTC / WDR / DNR / DWDR | |
| AHD / CVI / TVI / CVBS | |
| Color night vision range | |
| 5MPL | |

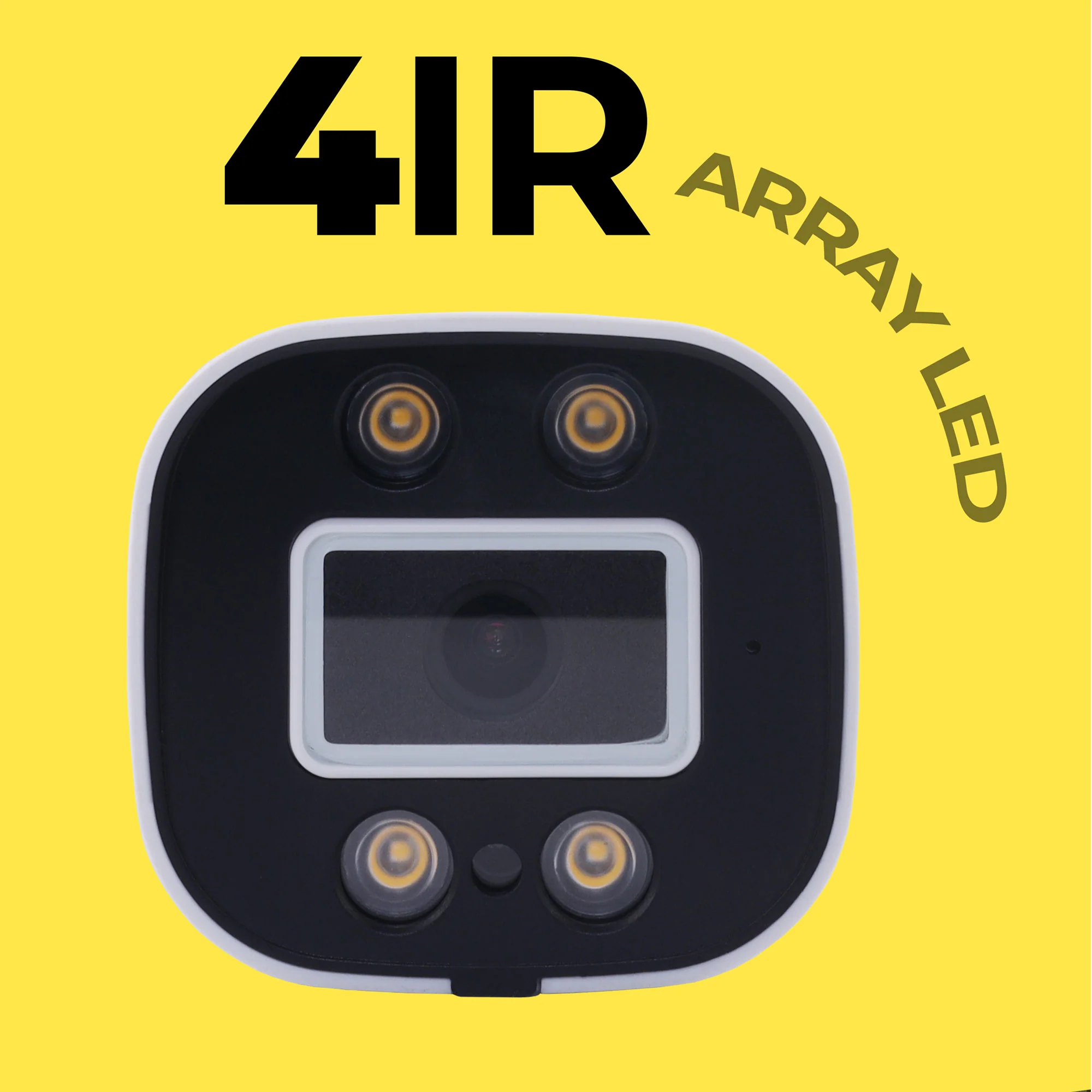

| 4 white led for color night vision | |
| Weather Proof | |
| CMOS Image Sensor | |
| Low Illumination |
Specifications
| Camera | ||
| Image processor |
1/2.9" 5MPL hd cmos sensor | |
| Minimum illumination | Color : 0.01 [email protected], AGC ON B/W : 0 lux with IR |
|
| Image Sensor |
1/2.9" cmos sensor | |
| Shutter speed |
1/50(1/60) to 1/100,000 seconds |
|
| Angle of view | 3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical) | |
| Scanning system |
Progressive Scan |
|
| Lens | ||
| Focus Length |
3.6 mm (Fixed) | |
| Mount Type / Lens | M12 | |
| Focus Control | Fixed | |
| Lens Type | Removable | |
| Auto Iris |
Support | |
| Lens | 3.6mm | |
| Max. Aperture | F2.0 | |
| Night Vision | ||
| IR Cut filter | Yes | |
| IR Range | 20M | |
| IR Power On | Auto Control |
|
| Camera Features | ||
| No of IR LEDs | 4 array IR LED | |
| Day/Night | Support | |
| Noise Reduction |
3D NR | |
| Picture Adjustment | Yes | |
| WDR | Yes | |
| White Balance | Automatic | |
| AGC (Gain Control) | Auto / Manual | |
| ICR (Infrared Cut Removable Filter) | Auto(ICR) / Color / B/W |
|
| Back Light Compensation | BLC / HLC / WDR | |
| Video output |
CVI: (1920x1080p) @25/30fps; 720p@25/30fps; AHD: (1920x1080p) @25/30fps; 720p@25/30fps TVI: (1920x1080p) @25/30fps; 720p@25/30fps; CVBS: 960H(PAL/NTSC) |
|
| Video Compression | H.265 | |
| Weatherproof Standard |
IP66 Weather-Proof | |
| S/N Ratio | >50dB | |
| General | ||
| Power Consumption | DC12V±10%, 500mA | |
| Operating Temperature |
10°C ~ +60°C/ Less than 95%RH | |
| Weight | 190g | |
| Body type | ABS Plastic | |
| Dimension (W xD x H) |
5.7 x 19.1 x 5.4 cm | |
| Country of Origin | India |
|
| Package Contents | ||
| CCTV Camera | 1 U | |
| Mounting Kit | 1 U | |
| QR Code User Manual | 1 U |
$10.30
Original: $34.33
-70%Zeb AHDPBSL24—
$34.33
$10.30Product Information
